ESPDuino (ESP-13 Module)

ESPDuino (ESP-13 Module)

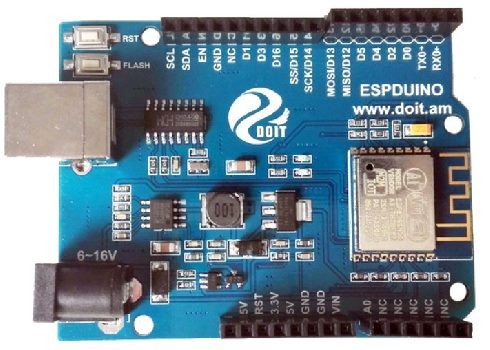

ESP8266 development board in an arduino UNO formfactor.

Manufacturer(s)	doit
Flash	4 (MB)
Total nr of pins	16
Programmable pins	11
Antenna	PCB Antenna

Added by

Onno Dirkzwager

Other contributors (7)

Christiaan Broeders

2021-01-15 20:32:30

Updated pins_total

Christiaan Broeders

2021-01-15 20:32:30

Updated pins_prog

Christiaan Broeders

2021-01-15 20:29:20

Updated img_org

Arduino board settings

Board name:
ESPDuino (ESP-13 Module)

Flash size:

4MB (32Mb)

Partition scheme:

4MB (SPIFFS(FS) 2MB OTA:~1019KB)
4MB (SPIFFS(FS) 3MB OTA:~512KB)
4MB (SPIFFS(FS) 1MB OTA:~1019KB)
