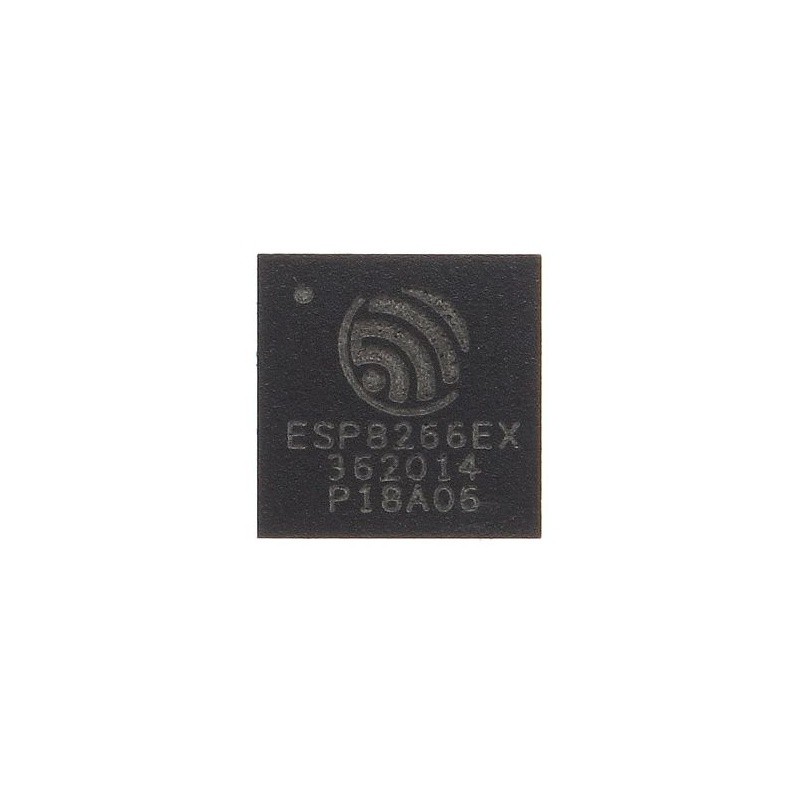

ESP8266EX has 17 GPIO pins which can be assigned to various functions by programming
the appropriate registers.
Each GPIO can be configured with internal pull-up or pull-down, or set to high impedance,
and when configured as an input, the data are stored in software registers; the input can
also be set to edge-trigger or level trigger CPU interrupts. In short, the IO pads are bidirectional, non-inverting and tristate, which includes input and output buffer with tristate control inputs.
These pins can be multiplexed with other functions such as I2C, I2S, UART, PWM, IR Remote Control, etc.
| Manufacturer(s) | Espressive |
| CPU | 80,160 |
| SRAM | 32 KB |
| RTC SRAM | 768 B |
| Total nr of pins | 32 |
| Programmable pins | 17 |
